Generic 20A Smart Battery Charger for Lithium, LiFePO4, and Lead-Acid (AGM/Gel/SLA) Batteries - 12V/20A u0026 24V/10A Trickle Charger and Maintainer for Boats, Motorcycles, and Lawn Mowers.

20 amp smart battery charger

Problem 1: Can't reach the maximum charging current? To protect the battery, the system automatically identifies the battery voltage and selects the most appropriate current to charge the battery. When the battery voltage is low (for example, the 12V battery voltage is less than 11V), the system automatically charges the battery at the maximum current. (3 gears can adjust charging current, large current, fast charging)

Problem 2: The LifePO4 battery is not fully charged? When the battery is fully charged, it has a callback function, reducing the charge by about 1V, which is normal. Added a small current after full charge uninterrupted charging. 3: It is normal that the fan has wind.

P20 parameters: ac input :100v / 240v~ 50/60 hz

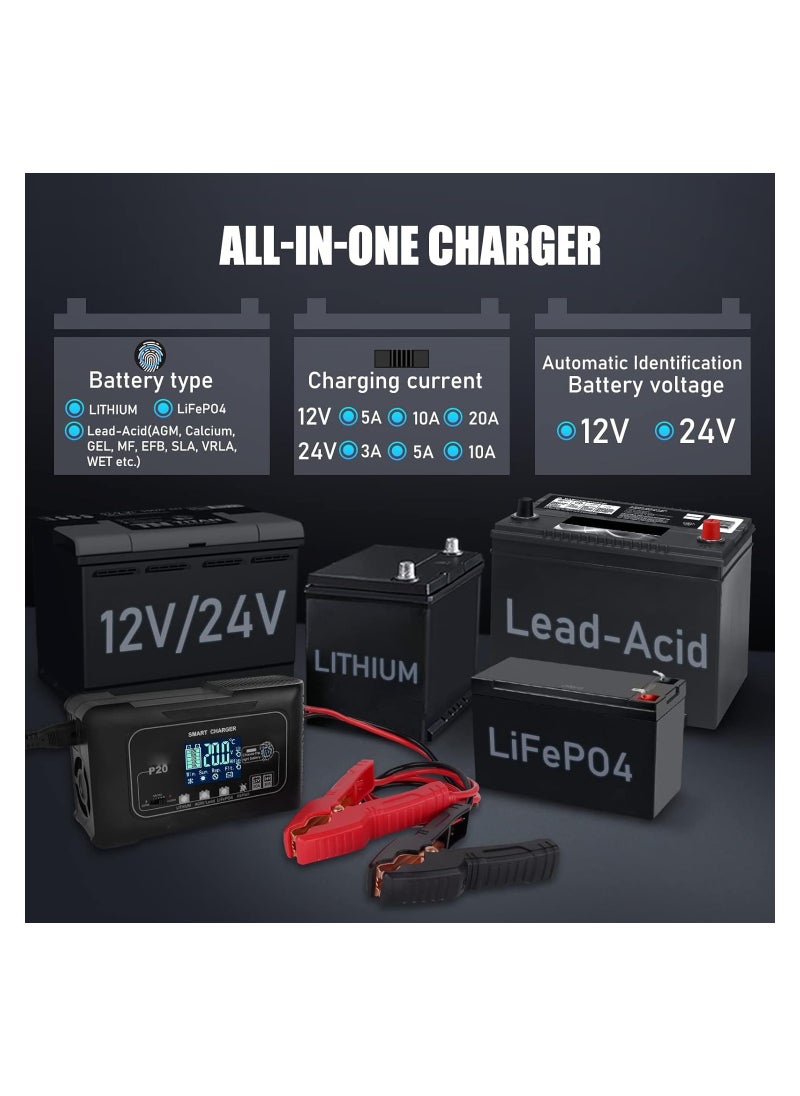

Output voltage :12V / 24V. Lithium /LiFePO4/ lead acid (AGM,GEL,EFB, MF, Flooded, VRLA, SLA and wet battery..)

Output current :12V20A amp; 24V10A

Support ah: 2AH-300AH, can have more capacity, the larger the capacity needs longer charging time.

Minimum starting voltage gt; 1.0 V

Power and load :MAX; 280 W

Size :158 x90x50mm(6.22 * 3.54 * 1.97 inches)

Net weight: 520 g

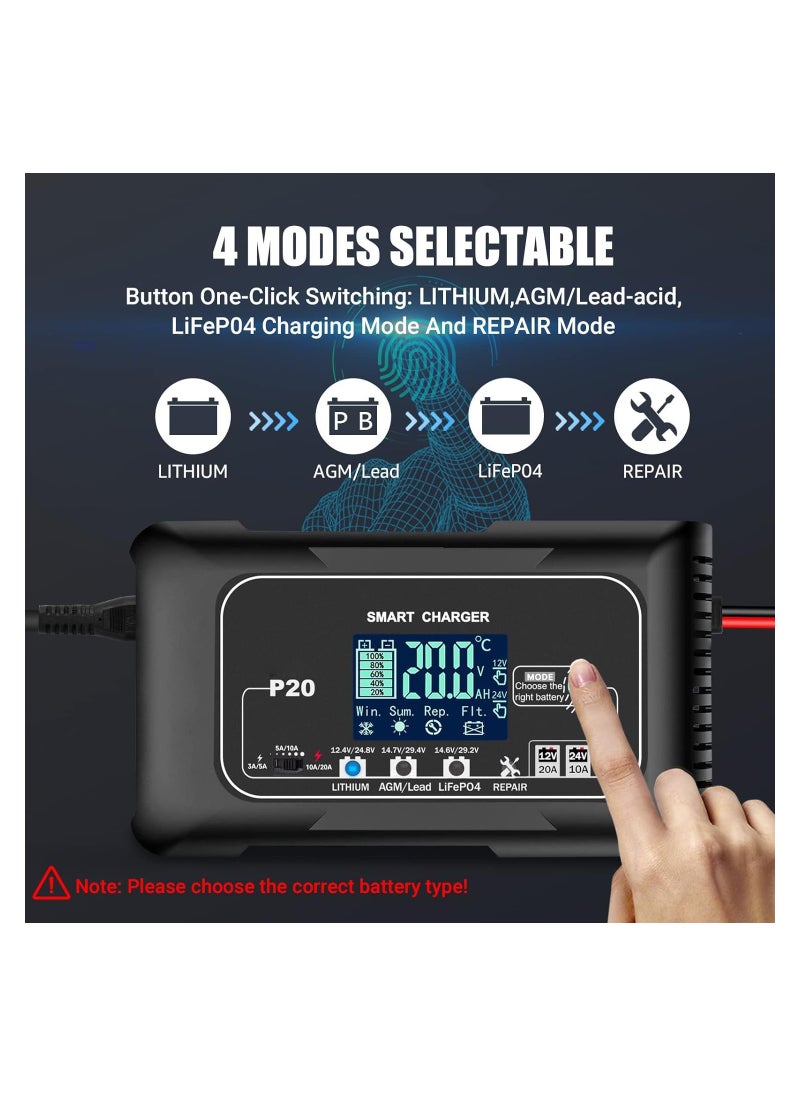

• 🚗【Automatic Charging】Automatic detection and identification of 12V and 24V batteries without manual selection. The CPU monitors the charging process intelligently.
• 🚗【Widely Used】Intelligent automatic recognition of 12/24V battery, quick charging, 12V 20Amp, 24V 10Amp ultra-high power, deep cycle battery charging, does not damage the battery. Lithium, LifePO4, Lead acid (AGM/GEL/EFB, MF, Flooded battery.

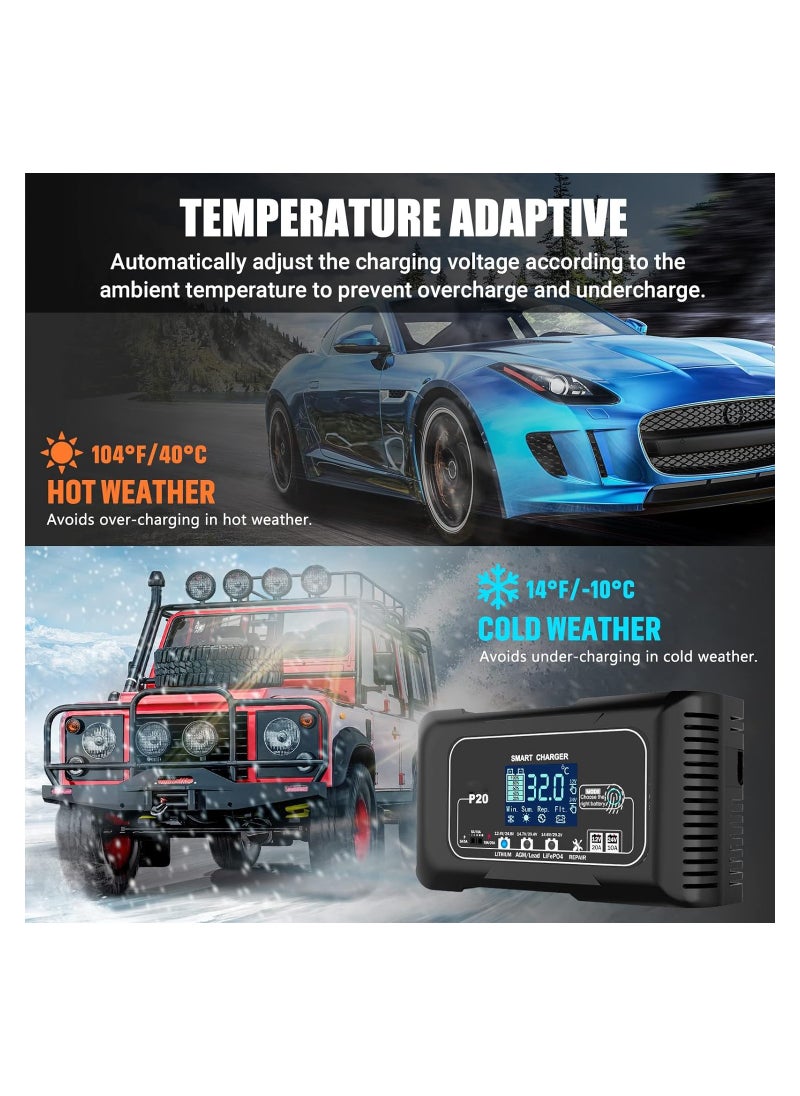

• 🚗【Protection and Maintenance】7 level fast intelligent charger, temperature compensation, cooling system, over current, over voltage, short circuit and reverse connection protection, no spark, refractory material, 13 ft cable, multiple protection,
• 🚗【Safe Charging】Intelligent charger, large LCD display of charging and battery status; Charge voltage and current, internal temperature, charge percentage, summer, winter mode, etc.
• 🚗【What You Get】Smart charger, 3M power cord, cable clip, manual, 2 junction boxes.
