Model: LUT7S Screen Size: 7" IPS Resolution: 1920x1200 pixels Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm) Aspect Ratio: 16:10 Brightness: 2200cd/m² (Light Sensor) Contrast Ratio: 1200:1 Backlight: LED Viewing Angle: 80°/80°(L/R) 80°/80°(U/D) Input 1 X BNC: 3G-SDI 1 X HDMI Output 1 X BNC: 3G-SDI 1 X HDMI 1 X DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor. Audio Audio: 3.5mm Stereo Headphone SDI Support Format 720p (60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98) HDMI Input/ Output Support Format 480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/23.98) 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) General Input Voltage: DC7～24V Power Consumption: ≤18W Working Temperature: -20°C~50°C Storage Temperature: -30°C~60°C Install Way: 1/4"-20 Thread Socket (Left, Right, Bottom) Battery Plate: Dual F970 Battery Plate Unit Size: 190Lx126Hx27D (mm) Unit Weight: 460g Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly. Advanced Features Support 3D LUT Log to Rec.709, user 3D LUT Upload Support Touch Menu Parade (RGB, YUV, Y) All Waves Vector RGB Histogram Brightness Histogram Embedded Audio Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable) False Colors Zebra Exposure (1%~100% adjustable) Check Field (Red, Green, Blue, Gray) Scan Mode (Under Scan, Over Scan) Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) Image Flip (H, V, H/V) Image Freeze Center Marker Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) Marker Color (red, green, blue, white, black, yellow) Color Temperature Adjustment Nine Grid Zoom (100%~300%) Aspect Ratio Pixel to Pixel

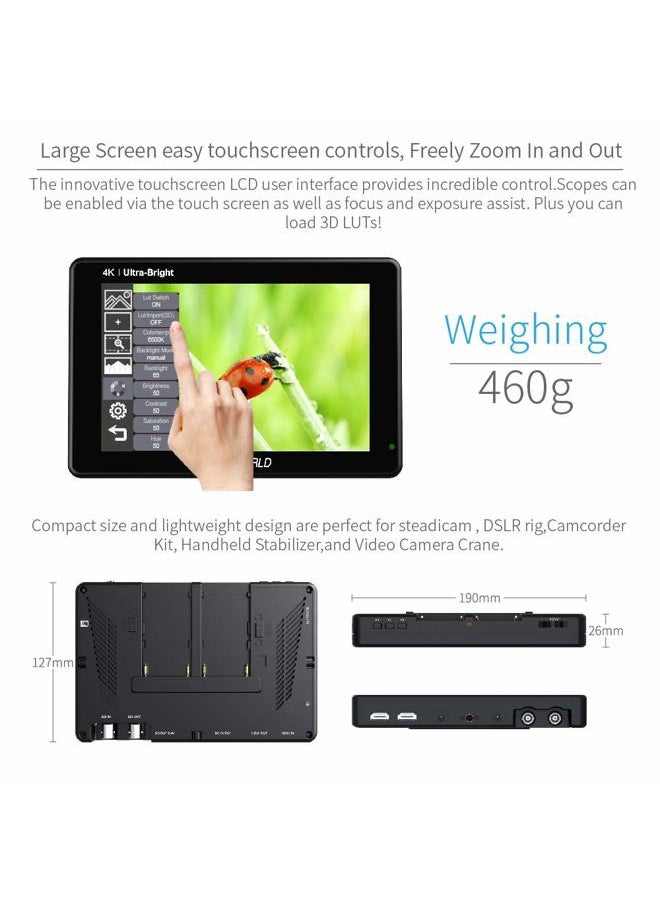

【Large Monitor with Easy Touch Controls】 The innovative touchscreen LCD user interface provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load 3D LUTs! The back of the monitor features a dual L-series/NP-F970 battery plate to provide ample power.

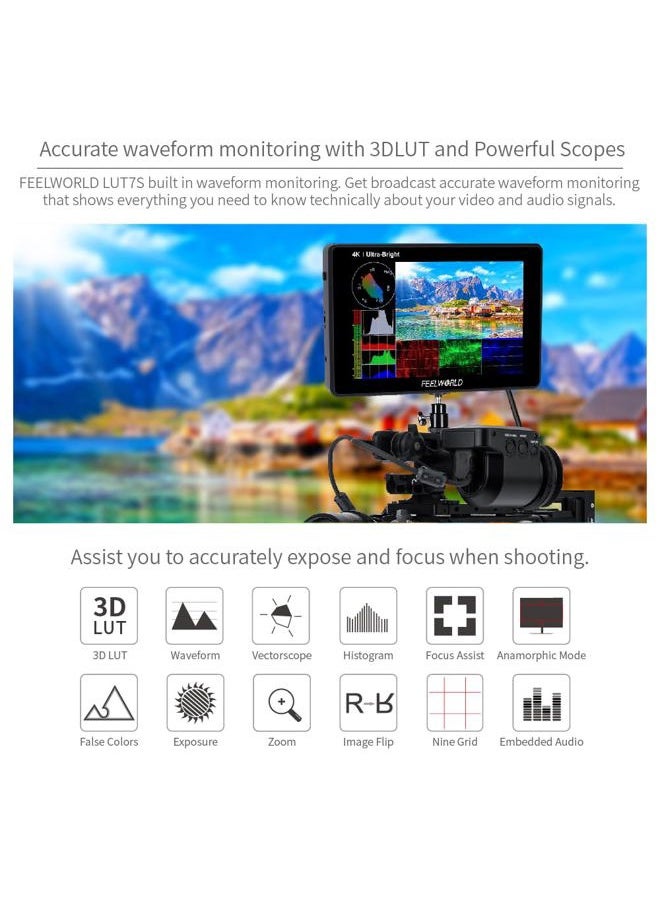

【Accurate waveform monitoring】When you need to analyze image quality more accurately than simply looking at the picture then use LUT7S's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope

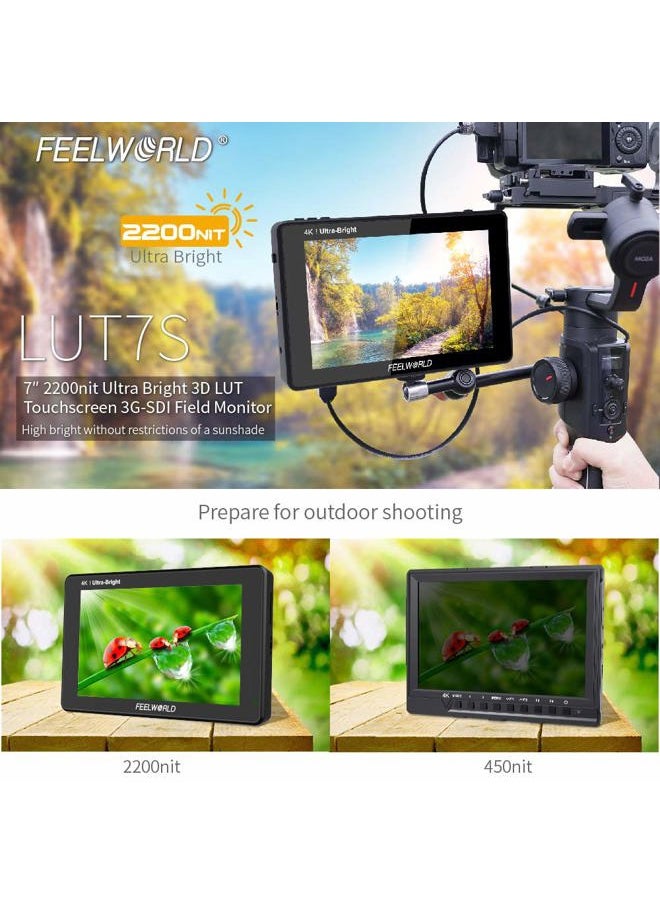

【2200nit Daylight Viewable】The 7" 1920 x 1200 monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!
【Light Sensor for Auto Dimming】And LUT7S has an ambient light sensor that detects ambient light levels and automatically adjusts the screen brightness. It ensures that the screen is readable in different environments and always protects your eye. Increasing the screen brightness compensates for bright sunlight when used outdoors, while a dimmer screen is more comfortable on the eyes when viewing in the dark.

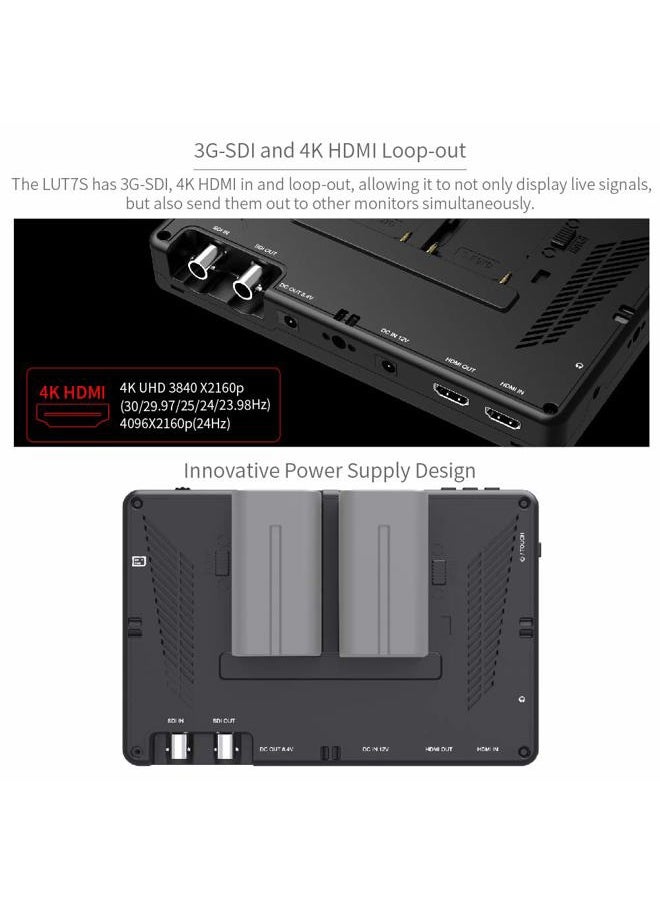

【3G-SDI and 4K HDMI Loop-out】
