Generic 4K HDMI to USB 3.0 Capture Card Video Capture Card Device 1080P 60FPS Cam Link Card Game Capture Card Adapter Screen Record Capture Device for Streaming Gaming Video Conference

【Note】

- For MacOS, do not need to download other software. just get audio and video by using the QuickTime software provided by for MacBook, do not need to install additional drivers.

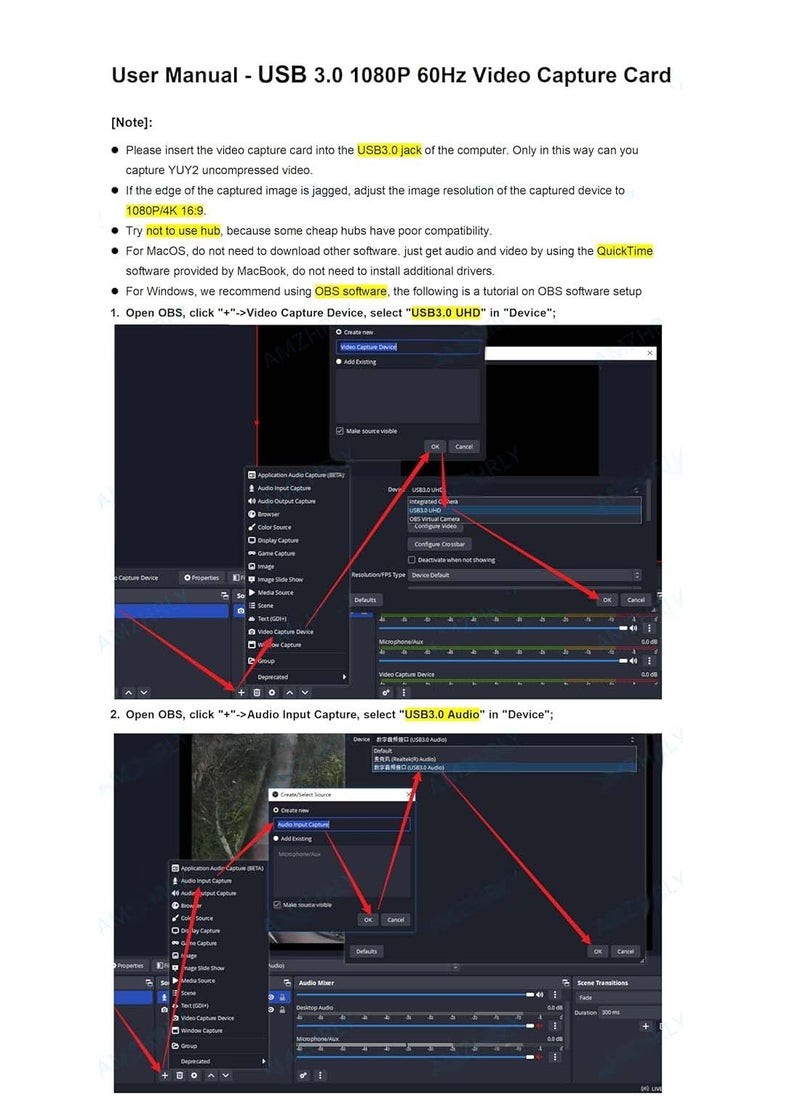

- For Windows, we recommend using for OBS software, then download the User Manual (PDF) on the current product description or ask the seller for it.

- Please insert the video capture card into the USB3.0 jack of the computer. Only in this way can you capture for YUY2 uncompressed video.

- If the edge of the captured image is jagged, adjust the image resolution of the captured device to 1080P/4K 16:9.

- Try not to use hub, because some cheap hubs have poor compatibility.

【Connection and Operation】

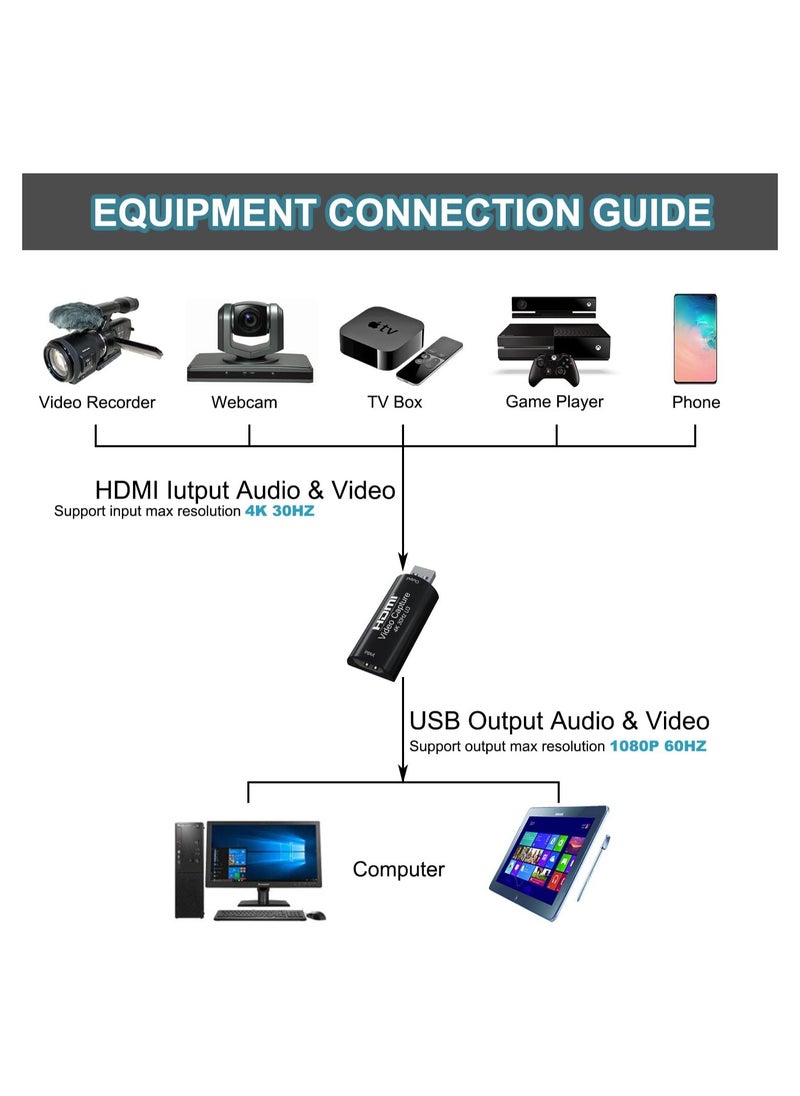

- Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.

- Insert the video capture card into the USB3.0 socket of the PC.

- Operation steps for USB video capture(OBS): Open OBS, click +-gt;Video Capture Device, select USB3.0 UHD in Device; click +-gt;Audio Input Capture, select USB3.0 Audio in Device; click “Start Recording”.

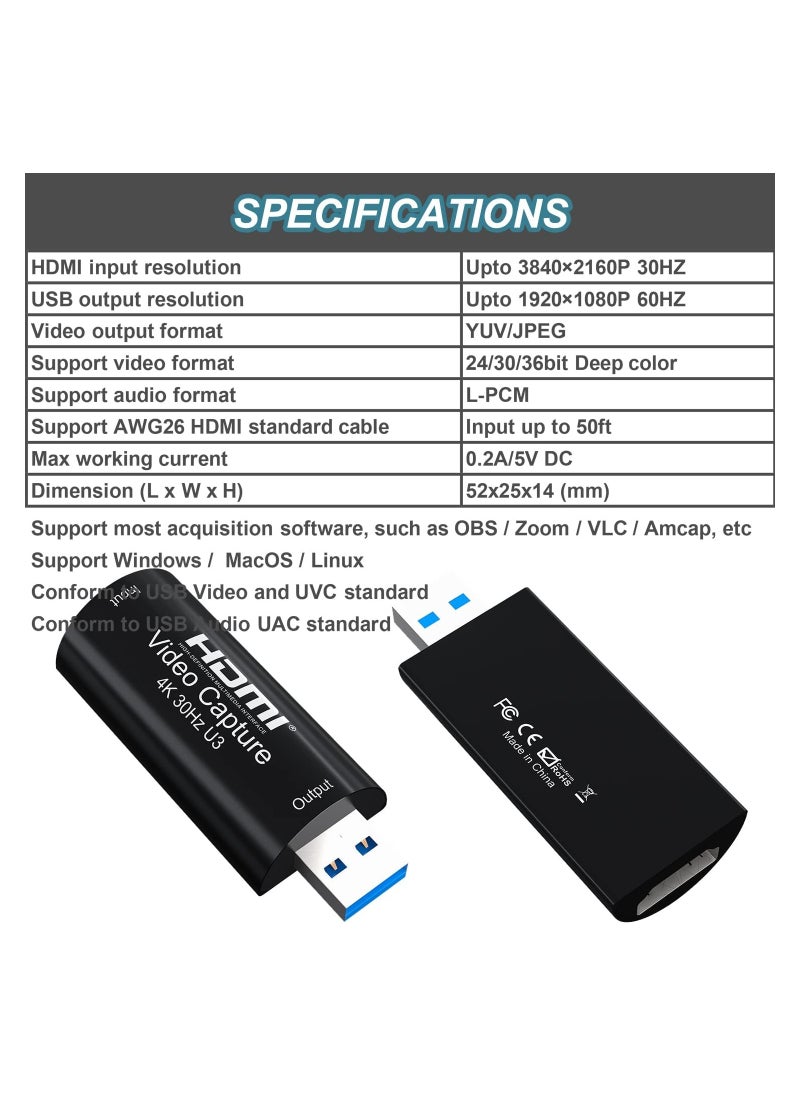

【Features】

- HDMI Input resolution 4K 30FPS

- USB output resolution 1080P 60FPS

- Video output format: YUV/JPEG

- Support video format: 24/30/36bit Deep color; audio format: L-PCM

- Support most acquisition software, such as VLC / OBS / Amcap, etc

- Support for Windows / Android / MacOS

- Conform to USB Video and UVC standard; USB Audio UAC standard

- Max working current: 0.2A/5V DC

- Dimension (L * W * H): 52x25x14 (mm)

- Without external power supply

- No need to install additional drivers.

• Insert the video capture card into the USB3.0 socket of the PC, adjust the resolution of the captured device to 1080P/4K 16:9 to enjoy clear video recording, gaming live streaming, conference live broadcast. Support HDMI input upto 4K 30FPS and USB3.
• Ultra-low latency technology, easy real-time transmission of video streams, real-time preview, direct video recording to hard disk, no compression and no delay
• Connect your DSLR, camcorder or action camera to your for Windows, MacOS and Linux. Easier for you to have real-time streaming media from for Twitch, Youtube, OBS, Zoom, Potplayer and VLC
• No driver or external power supply, suitable for high-definition acquisition, teaching recoding, Gaming, medical imaging, live streaming, broadcasting live, etc
