Flysky FS-I6X Flysky Fs-I6X 10Ch 2.4Ghz Rc Transmitter Controller with Ia6B Receiver Upgrade Cable for Rc Boat Racing Drone

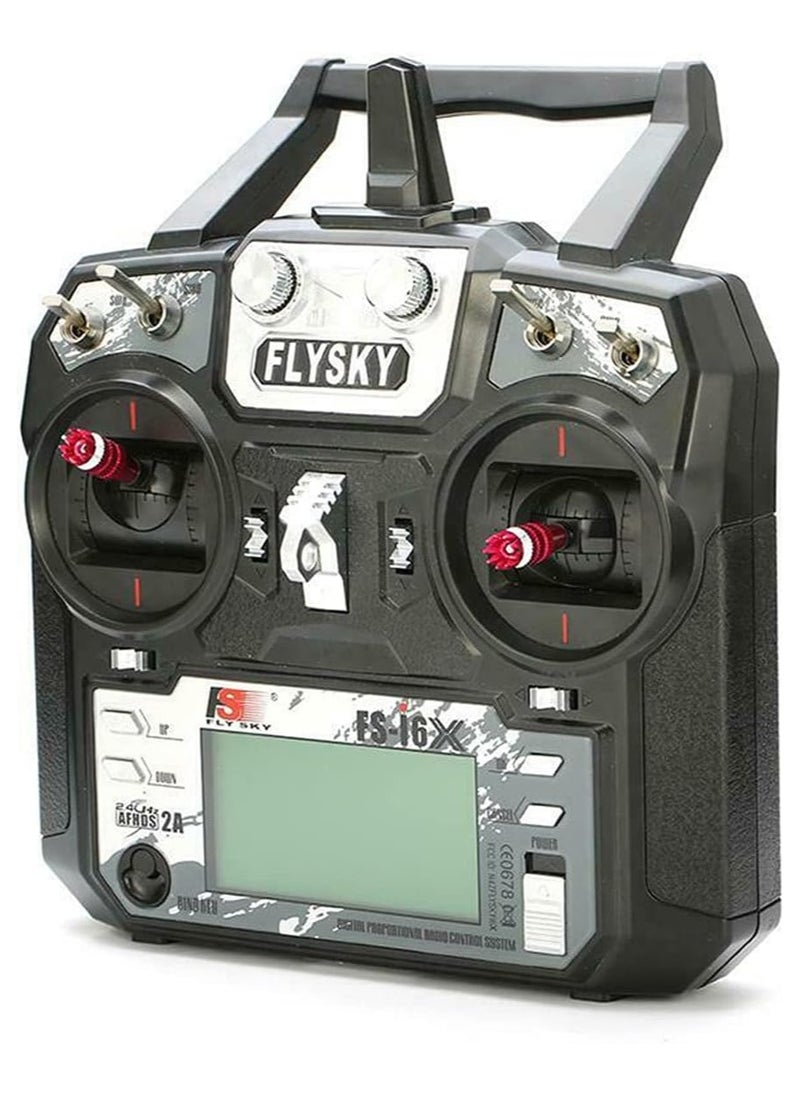

The FS-i6X transmitter and FS-iA6B receiver constitute a 6 channel 2.4GHz AFHDS 2A digital proportional computerized RC system. This system offers superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity. It is specially developed for all radio control models.

FS-i6X Transmitter Specifications:

Channels: 6-10 (default 6)

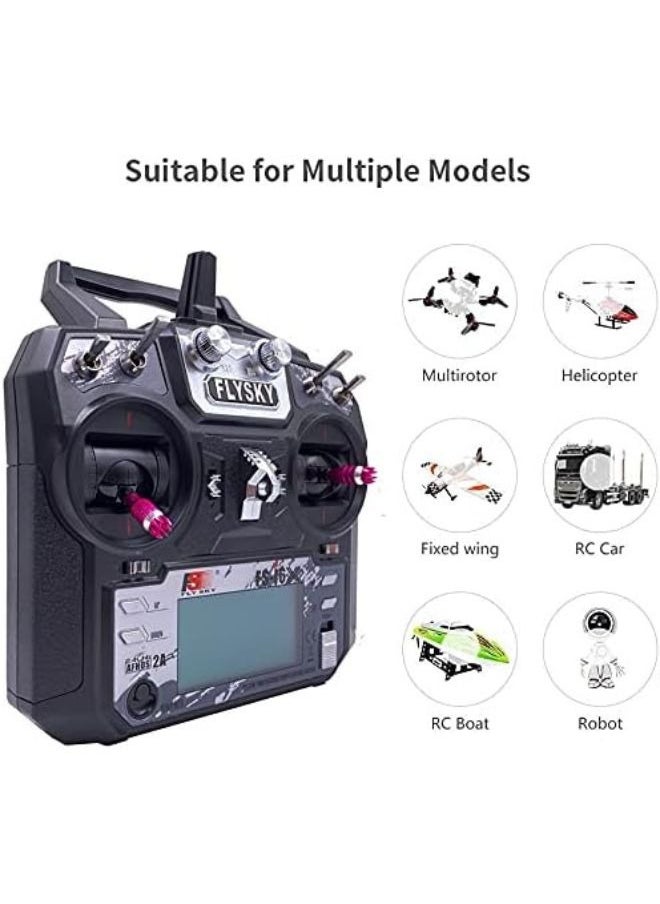

Model type: Fixed-Wing/Glider/Helicopter

RF Range: 2.408-2.475GHz

RF power: <20dBm

RF Channel: 135

Bandwidth: 500KHz

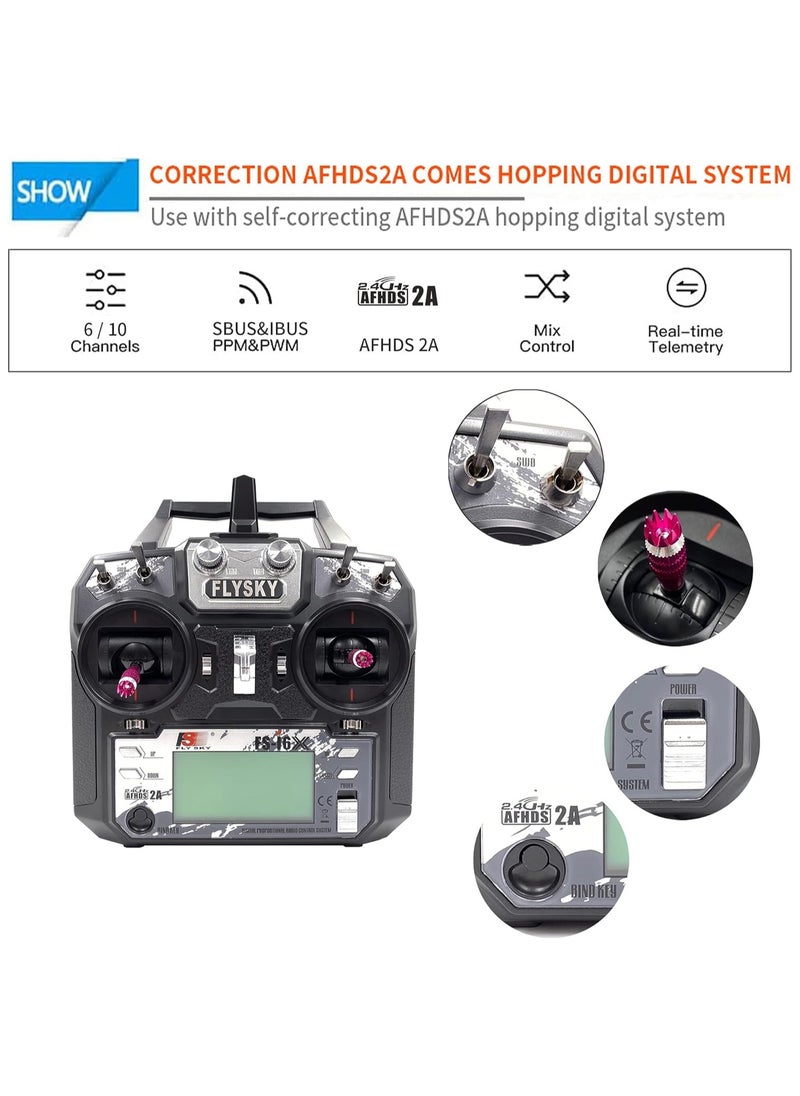

2.4GHz system: AFHDS 2A / AFHDS

Modulation type: GFSK

Stick resolution: 4096

Low voltage warning: <4.2V

DSC Port: PS/2 Port

Chargeable: No

Antenna Length: 26mm (Dual Antenna)

Weight: About 400g

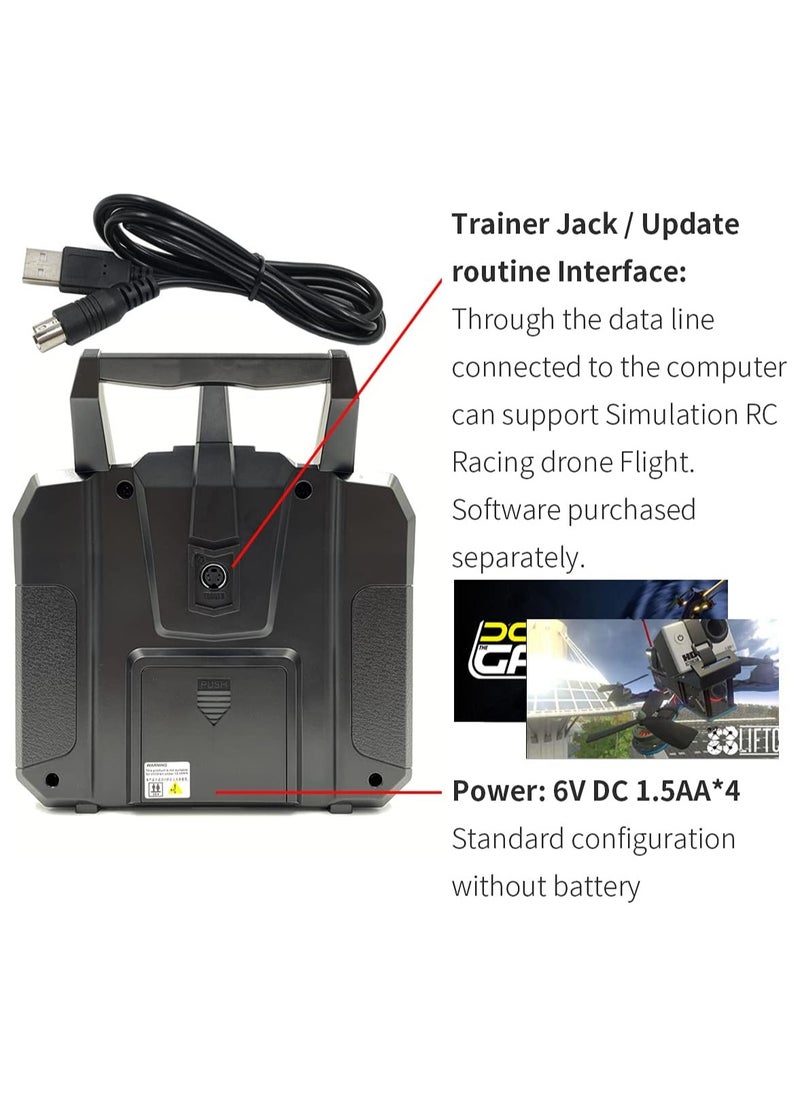

Power: 4 * AA battery (not included)

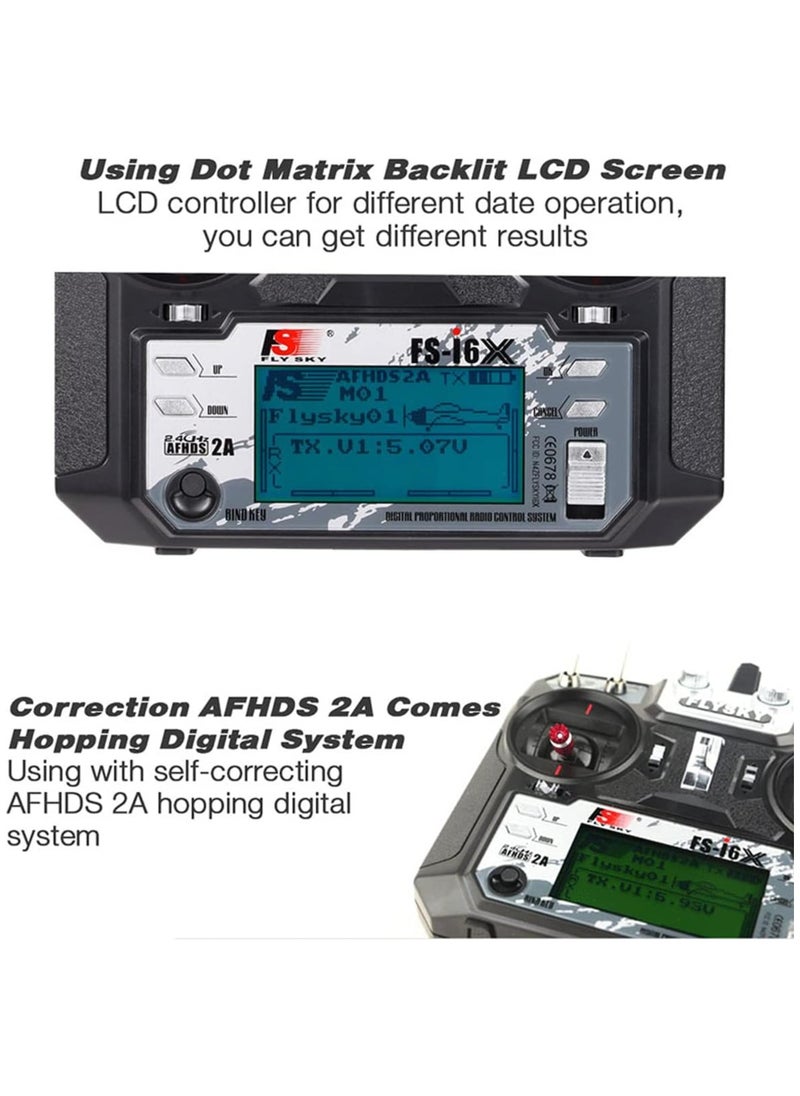

Display: STN transflective display, LCD 128*64 lattice, VA 73*39mm, LCD with white backlight

Size: 190 * 174 * 89mm

On-Line Update: Yes

Color: Black

Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

FS-iA6B Receiver Specifications:

Channels: 6

Model type: Airplane/Glider/Helicopter

RF range: 2.4055-2.475GHz

RF channel: 140

RF receiver sensitivity: -105dBm

Bandwidth: 500KHz

2.4GHz system: AFHDS 2A

Modulation type: GFSK

Power: 4.0-6.5V DC

Compatible transmitter: FS-i6X, FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G

Antenna length: 26mm (Dual Antenna)

Weight: 16.3g

Size: 47 * 26.2 * 15mm

i-BUS port: Yes

Data acquisition port: Yes

Package Information

Package size: 23.2 * 20.8 * 10.5cm / 9.13 * 8.18 * 4.13in

Package weight: 666g / 1.47lb

Gift box package

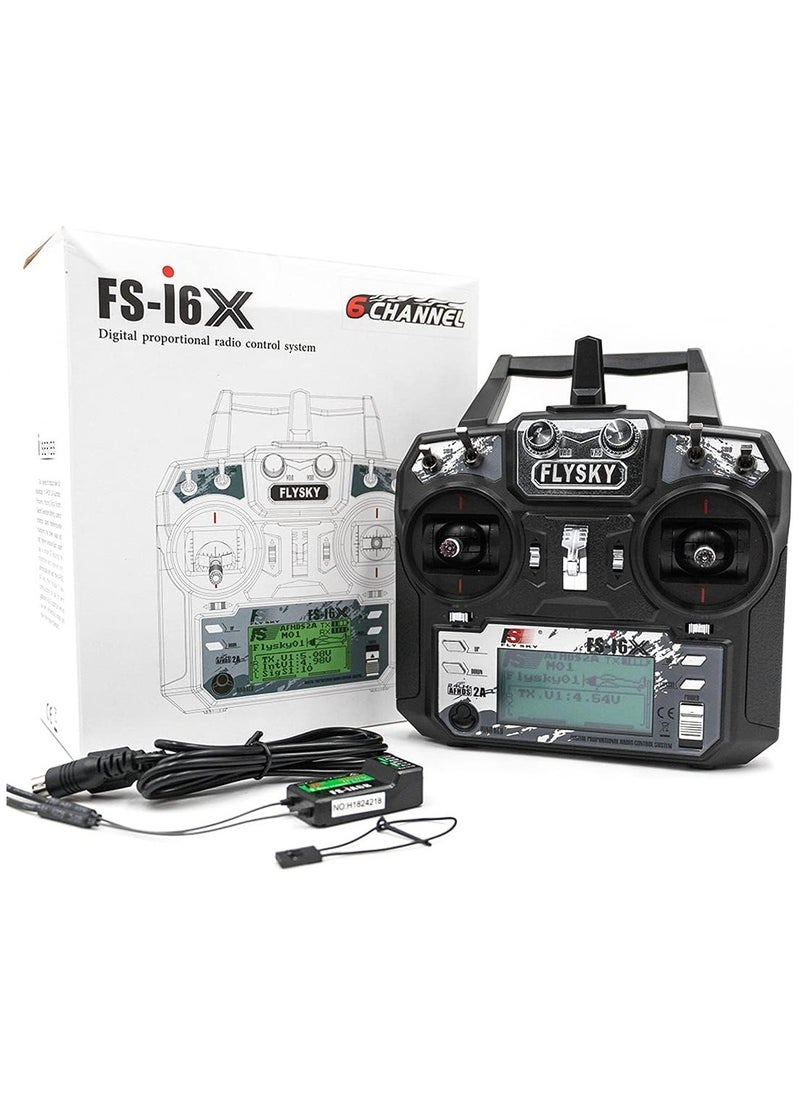

Package List:

1 * FS-i6X Remote Controller

1 * FS-iA6B Receiver

1 * Bind Plug

1 * Manual

• Multi-channel Hopping Frequency --- This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.

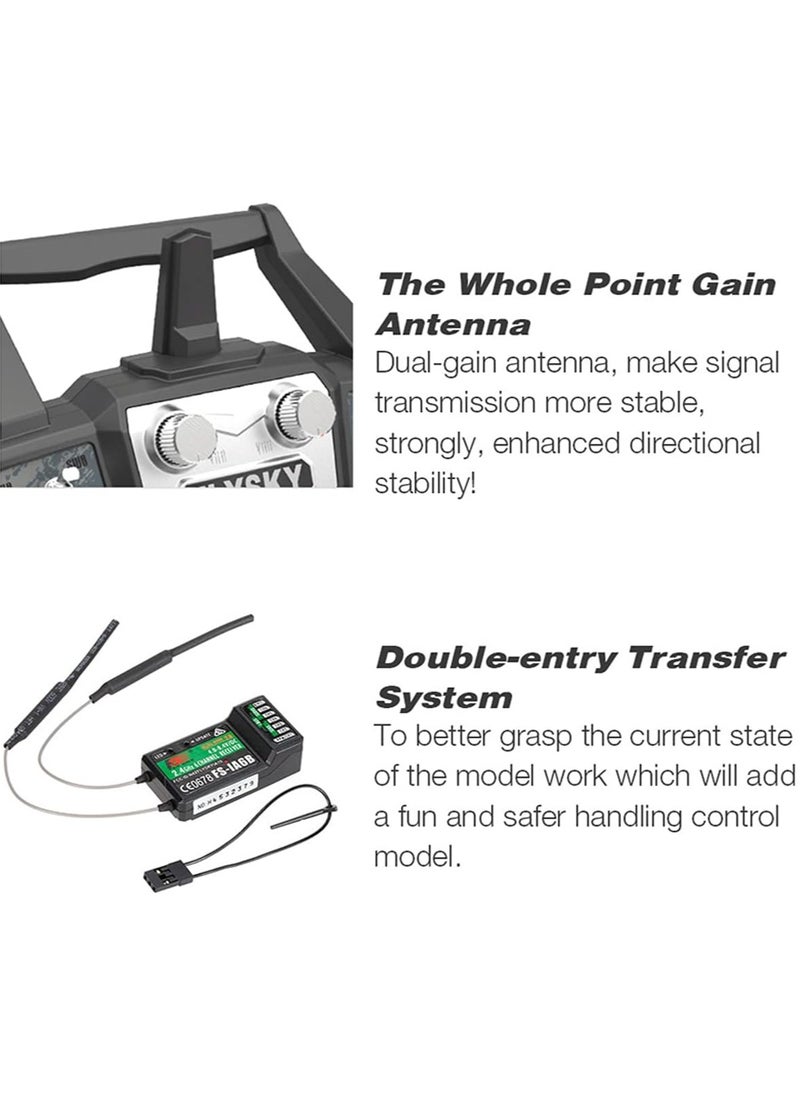

• Omni-directional Gain Antenna --- The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection.
• Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity.
• Bidirectional Communication Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
• Low Power Consumption --- The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
